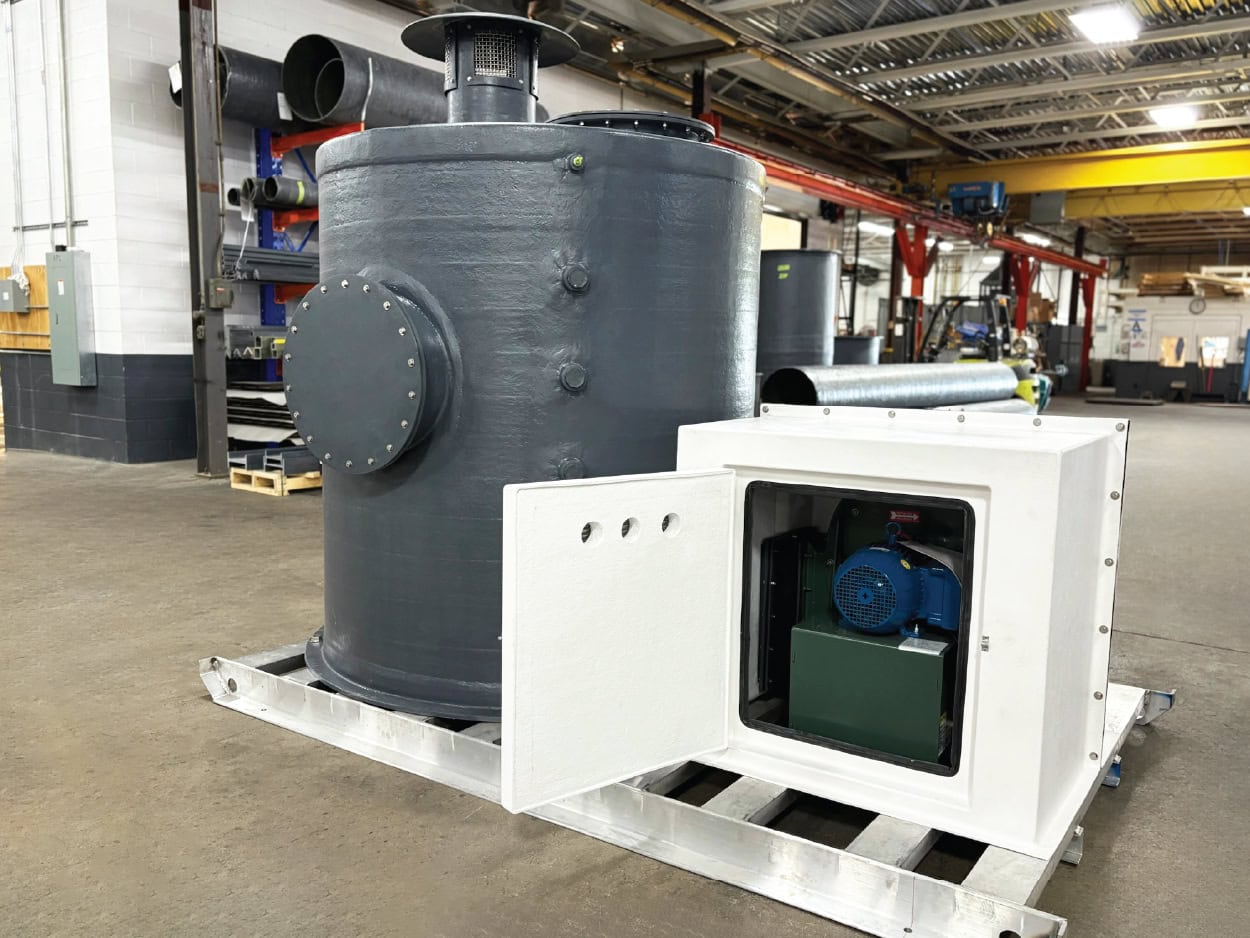

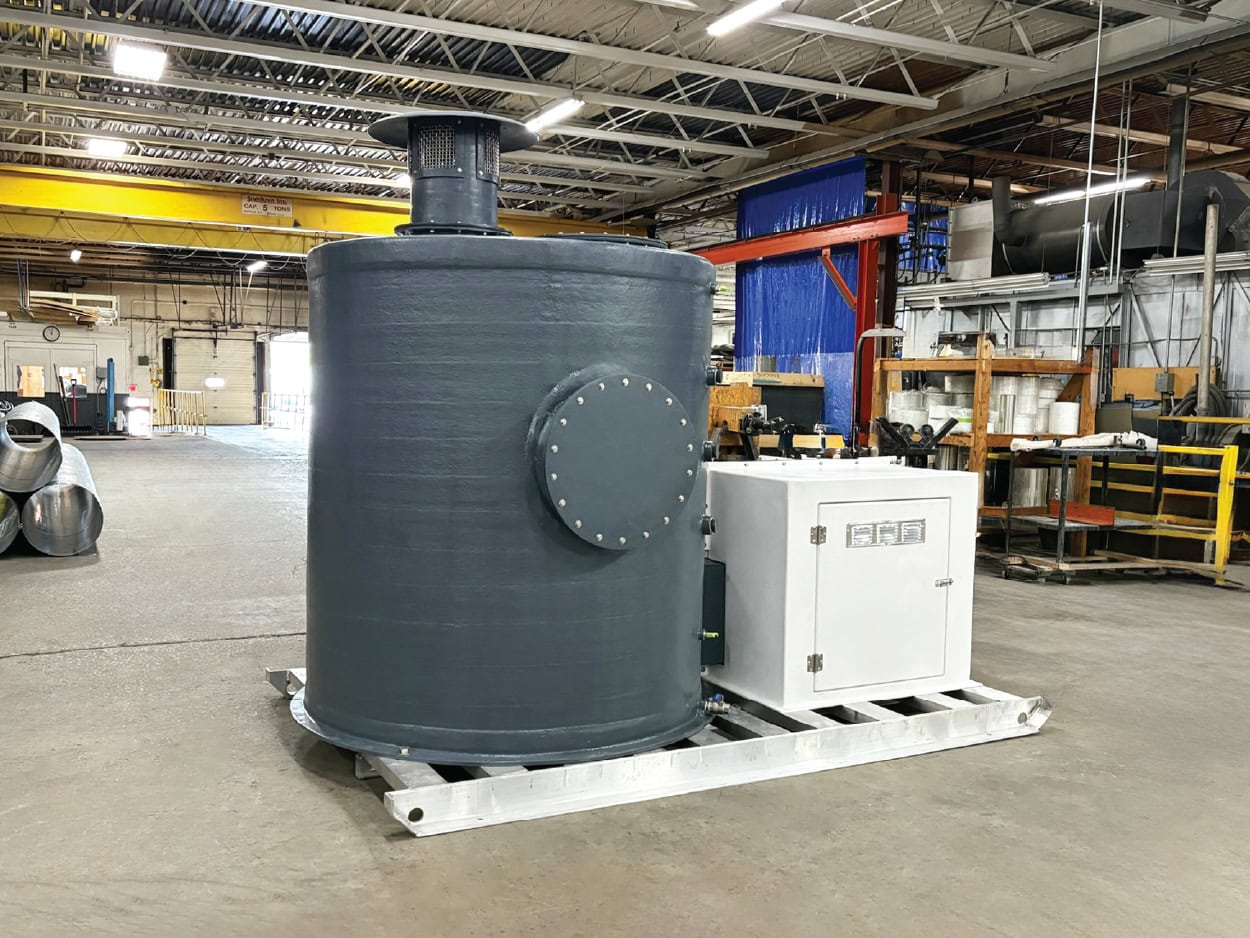

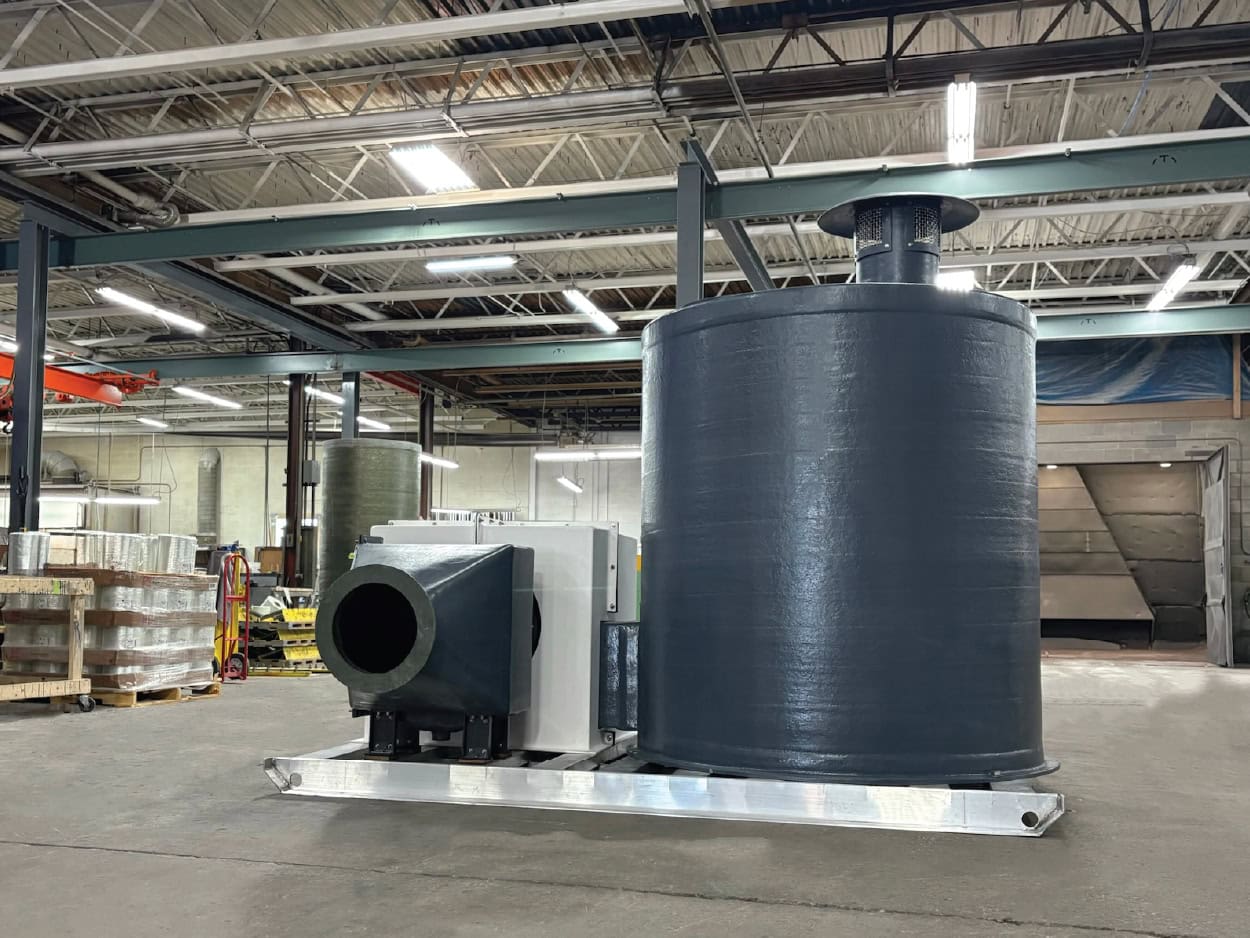

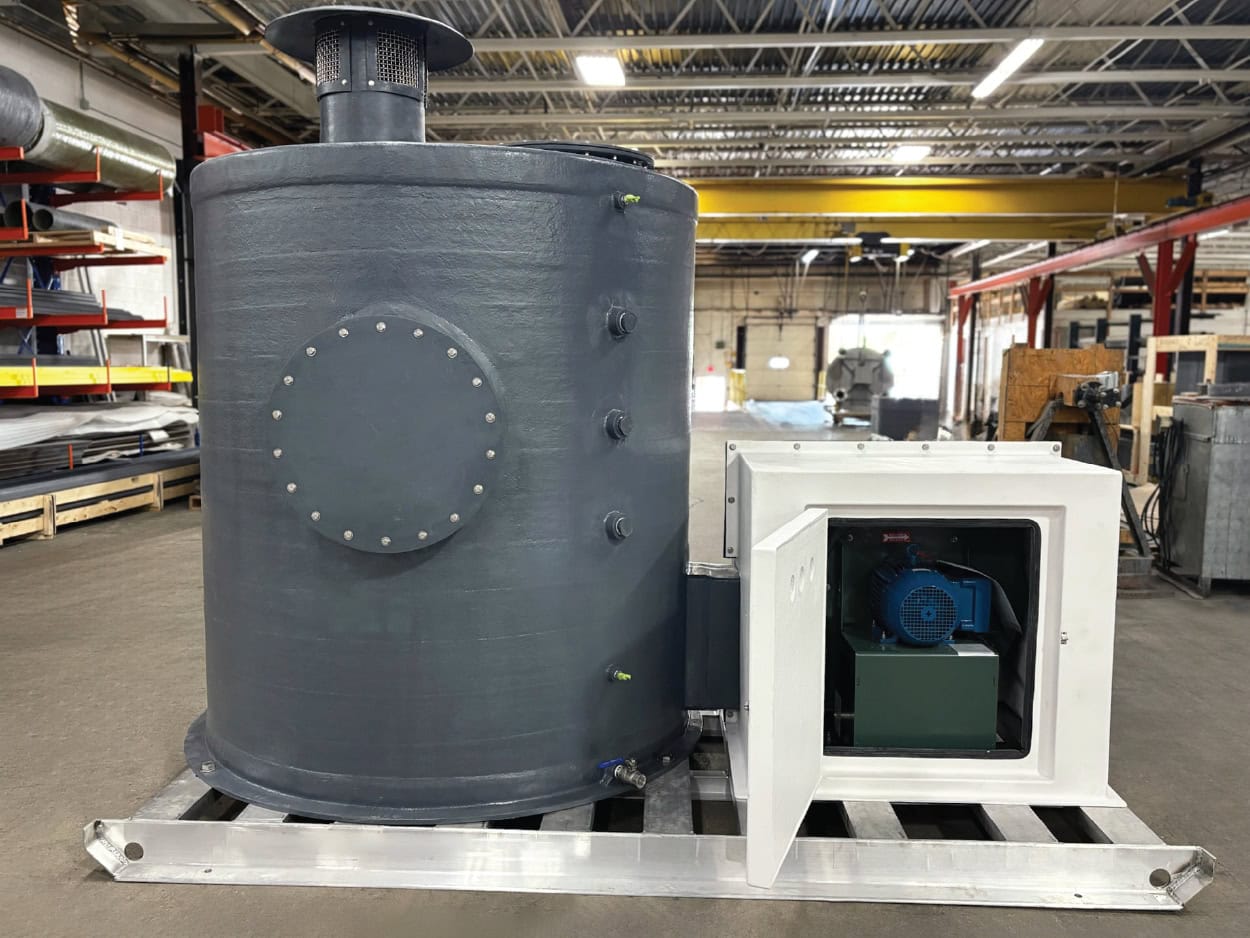

Fiberglass Scrubber System by VPC Fiberglass
This scrubber system is a robust, custom-engineered solution designed to handle caustic environments efficiently while ensuring durability and performance. It is fabricated by VPC Fiberglass’s Composite Fan Division, utilizing rugged fiberglass construction to meet exacting specifications.
Key Features
60-Inch Fiberglass Vessel
- The main scrubber vessel, constructed of high-grade fiberglass, is 60 inches in diameter.
- Engineered to withstand harsh, caustic conditions while maintaining structural integrity.
- Designed for optimal interaction between the scrubbing medium and exhaust gases.
- Fabricated using a vinyl ester resin for superior chemical resistance and long-term durability in harsh environments. This includes a corrosion barrier (inner liner and resin-rich layer) specific to the chemical environment.
- Fully resistant to chemical attack, moisture absorption, and UV degradation when properly coated.
- Eliminates internal coating failures and maintenance cycles common with steel-lined vessels, ensuring long-term reliability.
Exhaust Stack with Rain Cap
- Includes a fiberglass exhaust stack topped with a rain cap to prevent water ingress.
- Ensures safe dispersion of treated gases into the atmosphere while maintaining operational reliability.
Sample Ports and Pressure Taps
- Strategically placed ports allow for monitoring gas composition and system pressure.
- Facilitates regular maintenance and ensures system performance can be easily evaluated.
Drain Port
- Allows for efficient removal of liquid waste or spent scrubbing medium.
- Constructed from corrosion-resistant materials to ensure long-term functionality.
FRP Mist Eliminator Housing and Screen
- Features a fiberglass-reinforced plastic (FRP) mist eliminator housing with a high-efficiency screen.
- Removes residual moisture and fine particles from the treated gas stream.
- Enhances air quality and minimizes downstream corrosion or contamination.
Custom Fiberglass Sound Enclosure
- A sound enclosure tailored for the customer-supplied fan and motor assembly.
- Made from durable fiberglass to resist caustic and corrosive environments.
- Reduces operational noise, ensuring compliance with workplace safety and comfort standards.
Corrosion Resistance
- Meets Class 1 flame spread rating per ASTM E84 for enhanced safety in flammable or enclosed environments.
- Offers superior performance in aggressive and high-temperature chemical environments.
Made to Handle the Toughest Jobs!
Fabricated by VPC Fiberglass’s Composite Fan Division, this system combines precision engineering and rugged materials for unparalleled performance in even the most challenging environments.
