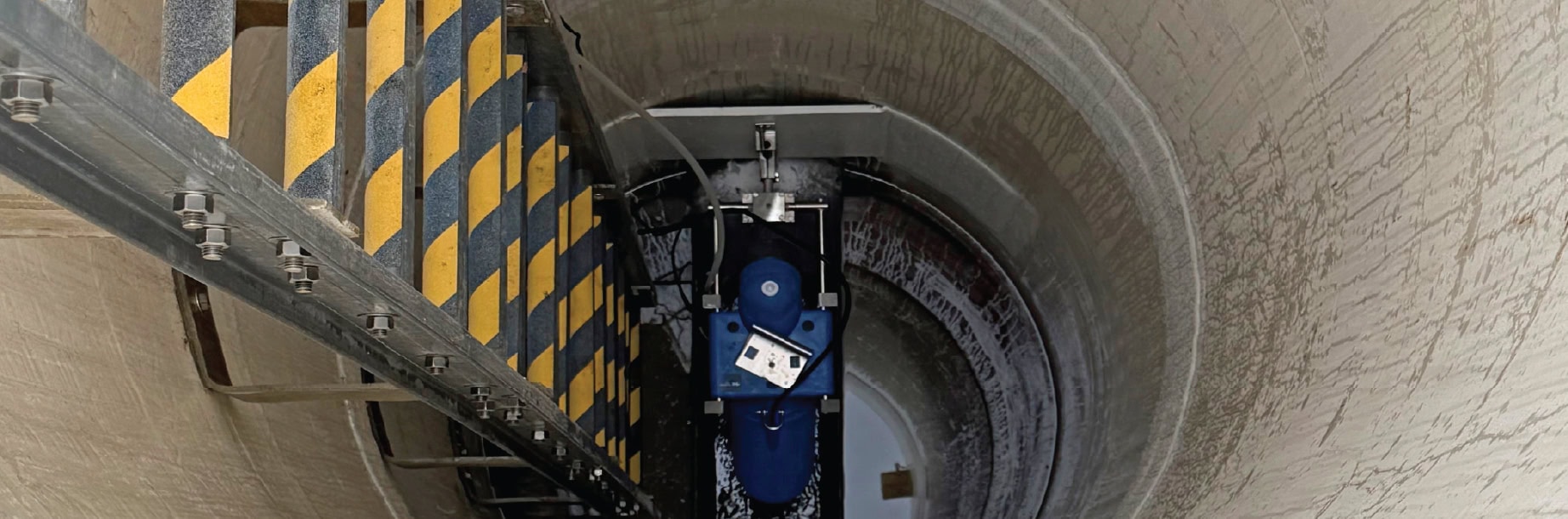

VPC Fiberglass partnered with C.C. Lynch & Associates to design and manufacture a custom 48” diameter x 18’-0” FRP LaserFlow® metering manhole for Carpenter Technologies in Tanner, Alabama.
This engineered fiberglass manhole system was developed to serve as a precision-built flow metering manhole, supporting accurate, long-term open channel flow measurement while simplifying installation and reducing ongoing maintenance requirements. It provides accurate flow measurement where flumes struggle with submerged conditions.
The Engineered Solution

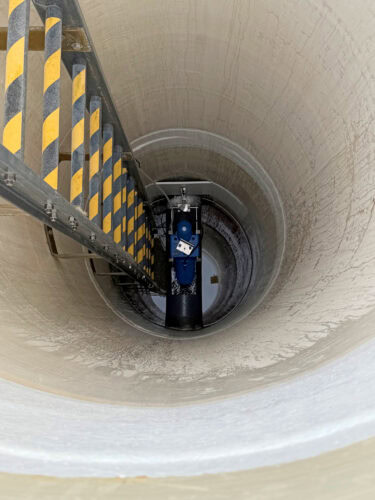

This project featured a fully integrated FRP manhole system specifically designed to accommodate the ISCO LaserFlow sensor. As a factory-fabricated flow meter structure, the system included:
- 48” Ø x 18’-0” (invert to grade) fiberglass manhole basin
- 12” integral through-pipe with factory cutout for LaserFlow®
- Equipment mounting board/bracket
- Integral ladder, flange, and floor
- 2” threaded coupling
- FRP dome cover terminating 12” above finished grade
- UV-resistant gel coat finishes
- ½” minimum wall thickness (manhole basin)
By incorporating the sensor mounting provisions and pipe cutout during manufacturing, VPC delivered a factory-integrated flow meter manhole that eliminated the need for field coring or retrofitting — ensuring proper sensor alignment and a streamlined installation process.
Key Benefits of the Integrated LaserFlow® Manhole System
Non-Contact Flow Measurement

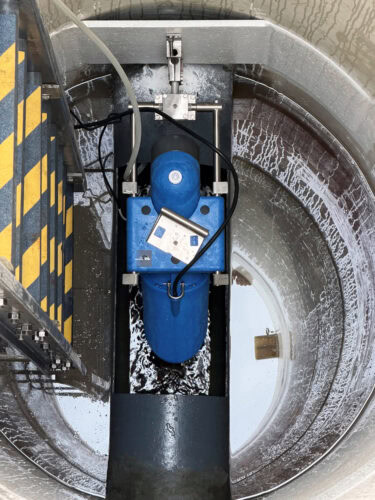

The ISCO LaserFlow® uses advanced non-contact flow measurement technology, combining laser level sensing with velocity measurement for accurate open channel flow monitoring. Because the sensor is not submerged in the flow stream:
- No moving parts in contact with fluid
- Reduced fouling and buildup
- Lower maintenance requirements
- Improved long-term reliability
- Consistent, high-accuracy flow data
Durable FRP Metering Structure
VPC’s fiberglass metering manhole provides a corrosion-resistant alternative to traditional concrete structures. The FRP construction offers:
- Long-term structural integrity
- Corrosion-resistant performance
- UV-resistant gel coat finishes
- Lightweight construction for easier handling and installation
- Extended service life with reduced maintenance
This makes it an ideal solution for facilities seeking a durable, long-lasting manhole alternative to concrete.
Improved Installation Efficiency
As a pre-engineered flow meter vault, factory integration of the through-pipe and sensor cutout helped:
- Eliminate field coring or modifications
- Reduce installation labor
- Ensure proper sensor positioning
- Minimize risk of field alignment errors
- Accelerate overall project timelines
Safe & Accessible Design
The integral ladder, flange, and floor system allow safe access when required, while the above-grade FRP dome cover helps protect the structure and provide secure access to the flow monitoring equipment.
